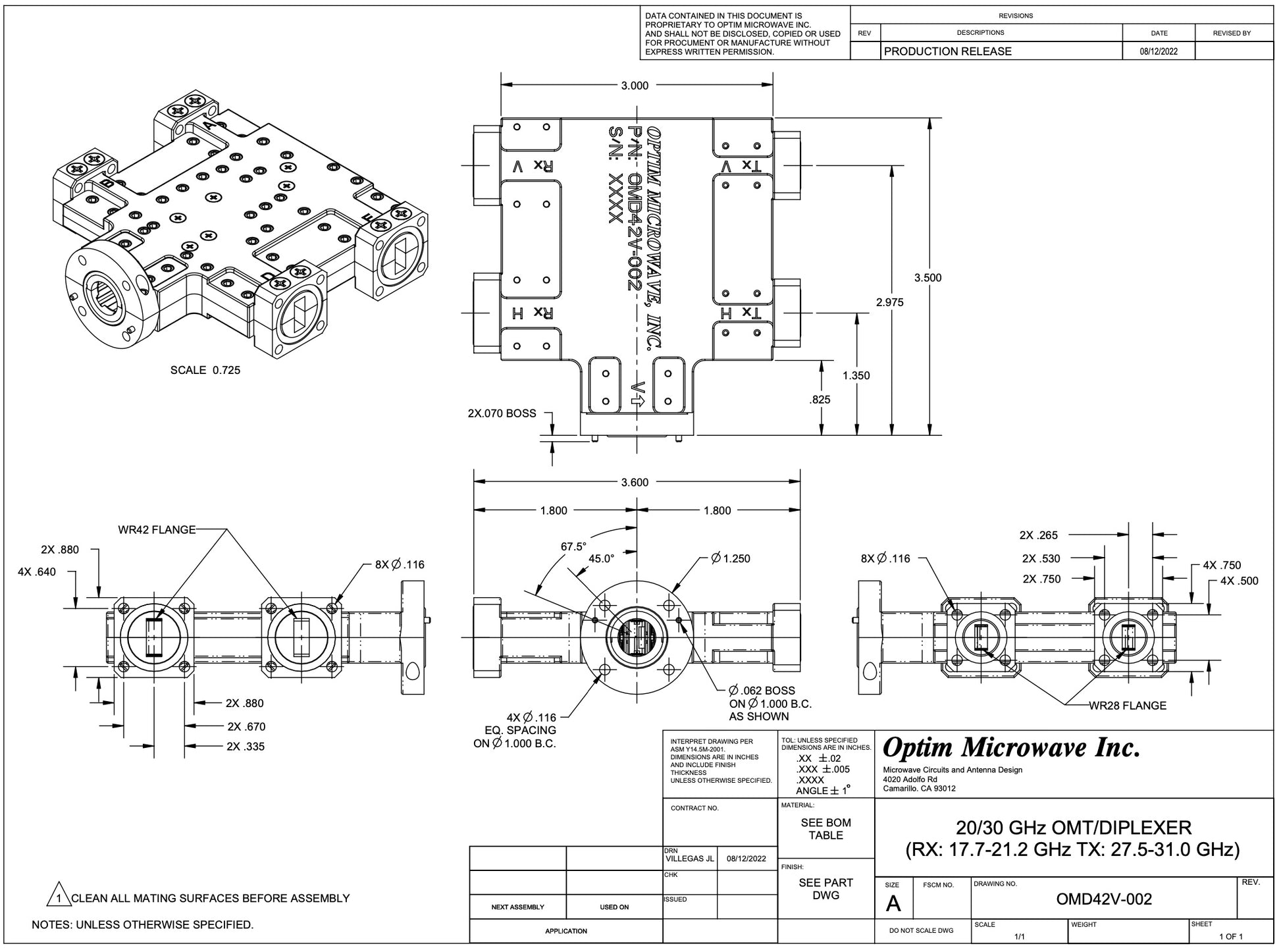

4-Port OMT/Diplexer Rx 17.7-21.2 Ghz Tx 27.5-31.0 Ghz

Frequency Bands

Rx 17.7-21.2 Ghz

Tx 27.5-31.0 Ghz

Ports:

Rx: 2x WR42

Tx :2x WR28

Common: 0.42" Dia Circular

Reflection

Rx: -14dB max

Tx: -18dB min

Isolation

Rx <-> Rx 40 dB min

Tx <-> Tx 40 dB mi

Tx <-> Tx 40 dB min

Tx-> Rx 85 dB min (Except in 30.5-31 Ghz Range)

Cross Pol At Common Port

Rx: -35dB max

Tx: -35dB max

Attenuation

Rx: < 0.4dB

Tx: < 0.4 dB
