4-Port OMT/Diplexer Rx 17.7-21.2 Ghz Tx 27.5-31.0 Ghz (Rear Facing Ports)
4-Port OMT/Diplexer Rx 17.7-21.2 Ghz Tx 27.5-31.0 Ghz (Rear Facing Ports)
Regular price
$4,500.00 USD
Regular price
Sale price
$4,500.00 USD
Unit price
per
Couldn't load pickup availability

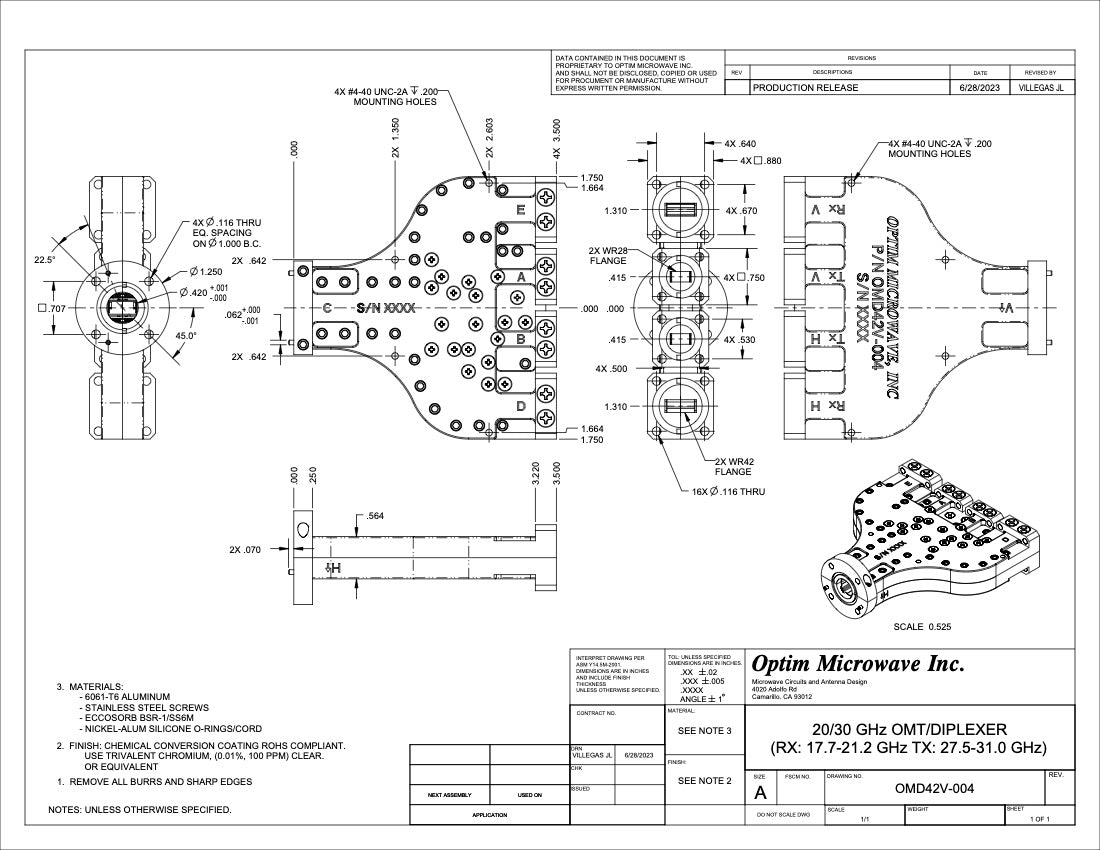

20/30 GHz OMT/Polarizer/Diplexer
(Rx: 17.7-21.2 GHz Tx: 27.5-31.0 GHz)
Frequency Bands |
Rx 17.7-21.2 GhzTx 27.5-31.0 Ghz |
Ports: |
Rx: 2x WR42Tx :2x WR28Common: 0.42" Dia Circular |
Reflection |
Rx: -20 dB maxTx: -20 dB min |
Isolation |
Rx <-> Rx 40 dB minTx <-> Tx 40 dB miTx <-> Tx 85 dB minTx-> Rx 85 dB min |
Cross Pol At Common Port |
Rx: -35dB maxTx: -35dB max |
Attenuation |
Rx: < 0.4dB
|
